Vertical Turret Lathe WEBSTER BENNETT EH 36

Category Lathes WEBSTER BENNETT ›
Manufacturer WEBSTER BENNETT ›

ARCHIVED AD
Vertical Turret Lathe WEBSTER BENNETT EH 36 was manufactured by the machine manufacturer WEBSTER BENNETT. Machine WEBSTER BENNETT EH 36 was built in 1975 year.

General data

Location United Kingdom
region Leicestershire
Year of manufacture 1975
Warranty Without warranty

Technical parameters

Diameter of the table 36 in
Maximum turning diameter 48 in
Maximum height of the workpiece 38 in
Maximum length of the vertical travel of the transverse beam 32 in
Maximum travel length of the carriage over the transverse beam 38 in
Minimum table rotary speed 5.6 1/min
Maximum table rotary speed 125 1/min
Total power demand 24.8 hp
Length of the lathe 114.2 in
Width of the lathe 88.2 in
Height of the lathe 118.1 in
Weight of the lathe 9.3 short ton

Equipment

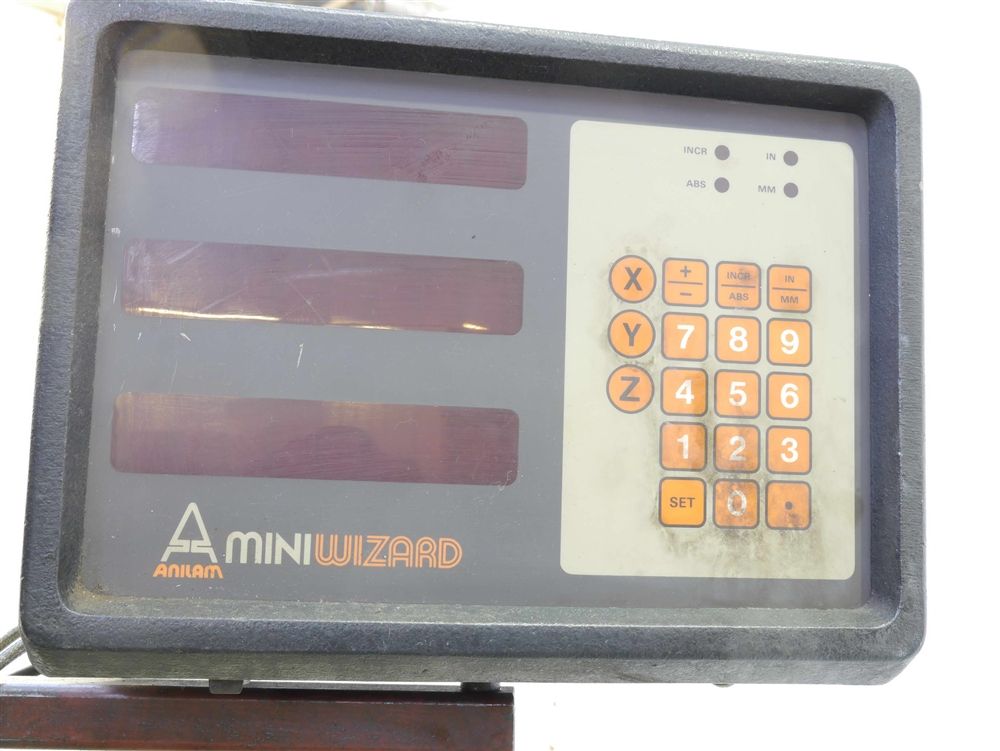

Digital readouts
4-jaw chuck
Vertical carriage with a turret
