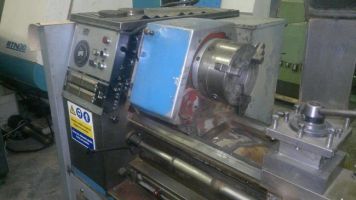

Universal Lathe CAZENEUVE HBX 590

Category Lathes CAZENEUVE ›
Manufacturer CAZENEUVE ›

ARCHIVED AD
Universal Lathe CAZENEUVE HBX 590 was manufactured by the machine manufacturer CAZENEUVE. Machine CAZENEUVE HBX 590 was built in 1988 year.

General data

Location France
region Bas-Rhin
Year of manufacture 1988
Warranty Without warranty

Technical parameters

Maximum length of the turning 37.4 in
Turning diameter over bed (max) 23 in
Turning diameter over cross slide (max) 11.8 in
Spindle bore 2.4 in
Minimum rotary speed of the spindle 50 1/min
Maximum rotary speed of the spindle 2500 1/min
Tailstock quill diameter 5.5 in
Length of the lathe 98.4 in
Width of the lathe 51.2 in
Height of the lathe 51.2 in
Weight of the lathe 2.2 short ton

Equipment

no data
