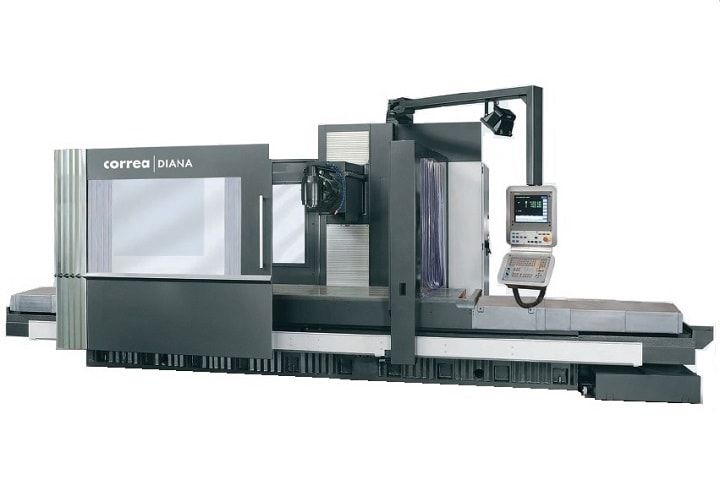

CNC Milling Machine CORREA Diana 25 (624063)

Category CNC Milling Machines and Machining Centers CORREA ›
Manufacturer CORREA ›

ARCHIVED AD
CNC Milling Machine CORREA Diana 25 (624063) was manufactured by the machine manufacturer CORREA. Machine CORREA Diana 25 (624063) was built in 2008 year.

General data

Location Spain
region Burgos
Year of manufacture 2008
Warranty Warranty for 6 months
Technical condition After complete renovation
Status A test can be performed
Stock number 624063

Technical parameters

Length of the working table 110.2 in
Width of the working table 35.4 in
Maximum table load (evenly distributed) 8818.5 lb
Power of the spindle drive 29.5 hp
Number of CNC controlled axles 3 pcs
Travel length X-axis (mechanical feed) 98.4 in
Travel length Y-axis (mechanical feed) 39.4 in
Travel length Z-axis (mechanical feed) 39.4 in
Maximum feed rate in X-axis 1.3 in/s
Maximum feed rate in Y-axis 1.3 in/s
Maximum feed rate in Z-axis 1.3 in/s
Total power demand 29.5 hp
Number of T-slots in the table 5 pcs

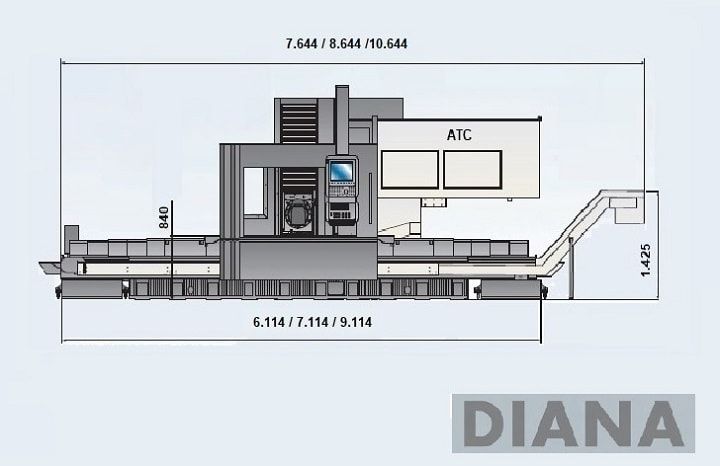

Machine height 110.4 in
Machine length 280.1 in
Machine width 199.6 in
Machine weight 4.4 short ton

Equipment

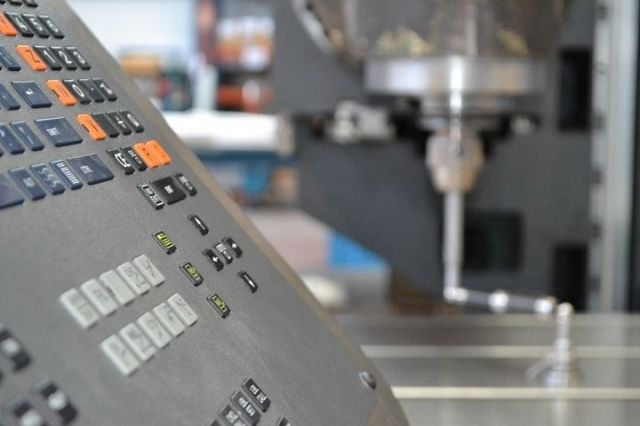

HEIDENHAIN TNC-i530
Technical documentation
