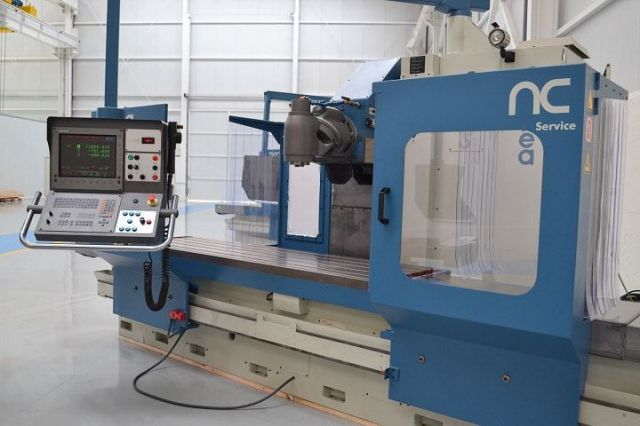

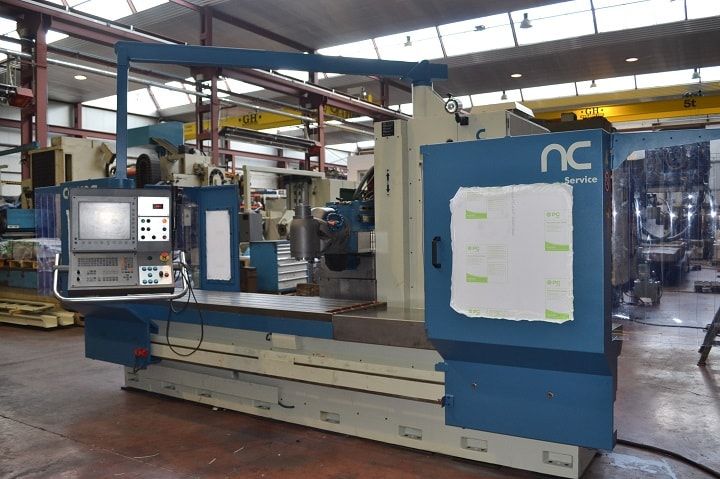

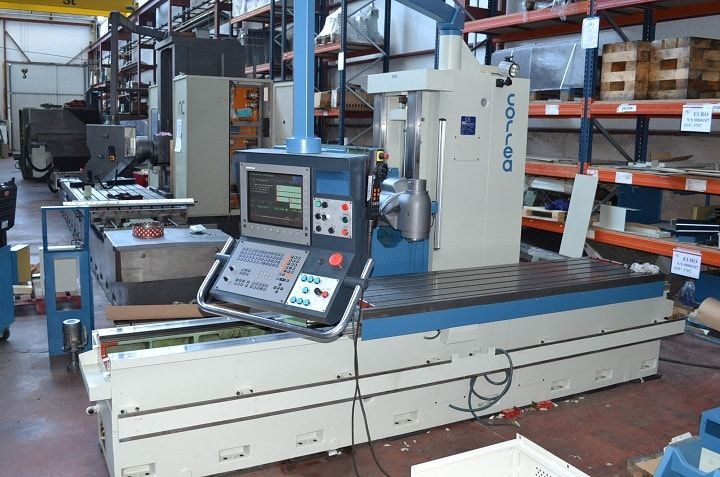

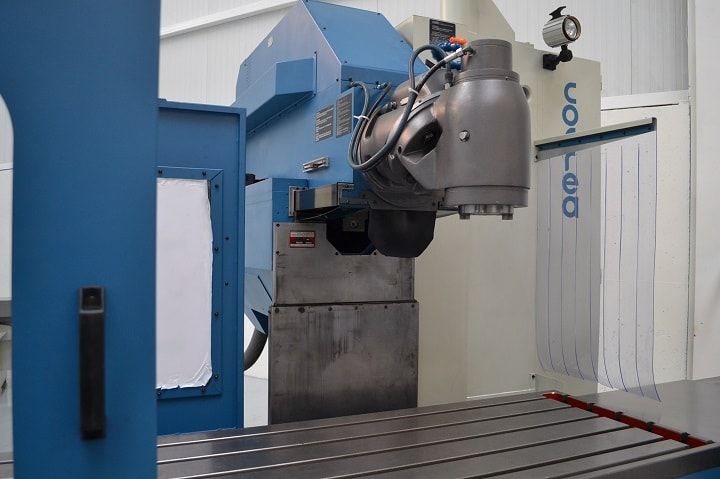

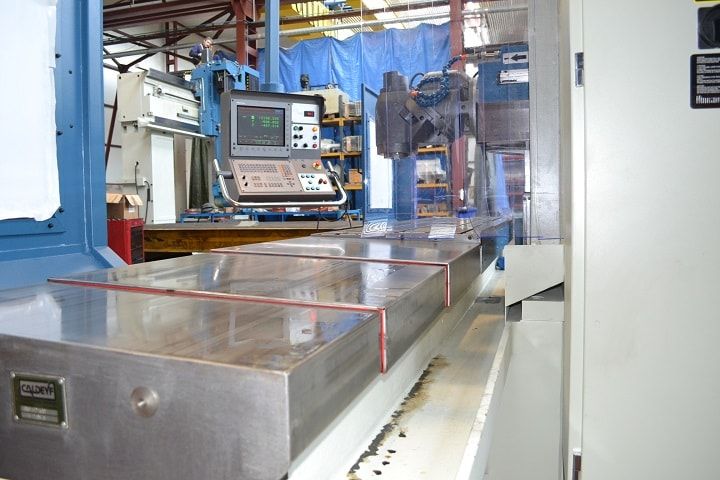

CNC Milling Machine CORREA CF22/25 (9671905)

Category CNC Milling Machines and Machining Centers CORREA ›
Manufacturer CORREA ›

ARCHIVED AD
CNC Milling Machine CORREA CF22/25 (9671905) was manufactured by the machine manufacturer CORREA. Machine CORREA CF22/25 (9671905) was built in 1998 year.

General data

Location Spain
region Burgos
Year of manufacture 1998
Warranty Warranty for 6 months

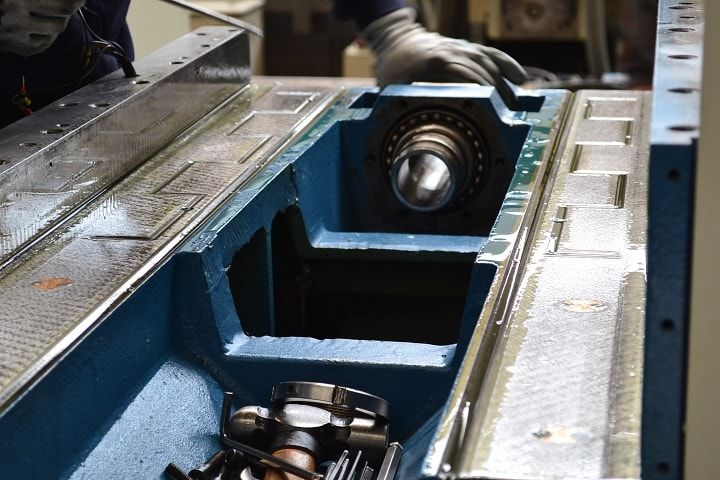

Technical condition After complete renovation
Stock number 9671905

Technical parameters

Length of the working table 98.4 in
Width of the working table 27.6 in
Maximum table load (evenly distributed) 8818.5 lb
Power of the spindle drive 29.5 hp
Number of CNC controlled axles 3 pcs
Number of synchronous axles 3 pcs
Travel length X-axis (mechanical feed) 98.4 in
Travel length Y-axis (mechanical feed) 31.5 in
Travel length Z-axis (mechanical feed) 31.5 in
Machine height 108.7 in
Machine length 260 in
Machine width 114.2 in
Machine weight 10.5 short ton

Equipment

HEIDENHAIN TNC-426
Technical documentation
