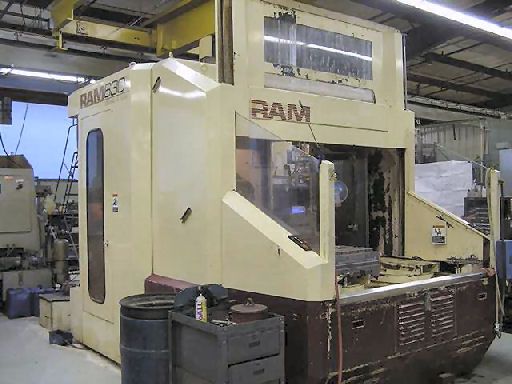

CNC Horizontal Machining Center G L RAM-630

Category CNC Milling Machines and Machining Centers G L ›
Manufacturer G L ›

ARCHIVED AD
CNC Horizontal Machining Center G L RAM-630 was manufactured by the machine manufacturer G L. Machine G L RAM-630 was built in 1995 year.

General data

Location United States
region New York
Year of manufacture 1995
Warranty Without warranty

Technical parameters

Length of the working table 24.8 in
Width of the working table 24.8 in
Maximum table load (evenly distributed) 2640 lb
Power of the spindle drive 35 hp
Number of CNC controlled axles 4 pcs
Number of tools in the magazine 40 pcs
Minimum rotary speed of the spindle 10 1/min
Maximum rotary speed of the spindle 12000 1/min
Travel length X-axis (mechanical feed) 35.4 in
Travel length Y-axis (mechanical feed) 31.5 in
Travel length Z-axis (mechanical feed) 29.5 in
Maximum feed rate in X-axis 24.9 in/s
Maximum feed rate in Y-axis 24.9 in/s
Maximum feed rate in Z-axis 24.9 in/s
Machine height 136 in
Machine length 207 in
Machine width 171 in
Machine weight 41000 short ton

Equipment

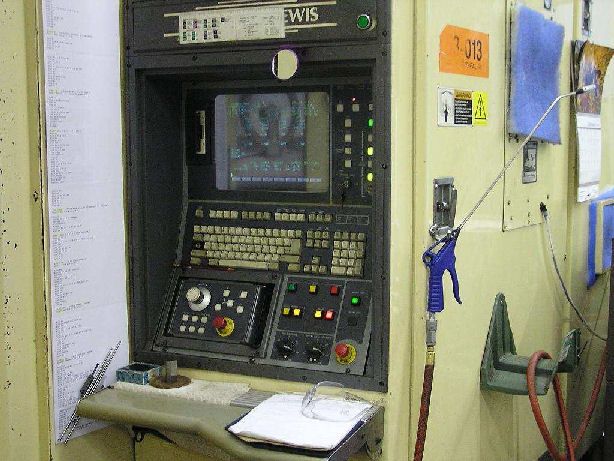

G L NUMERIPATH 8000 H
Liquid cooling system
